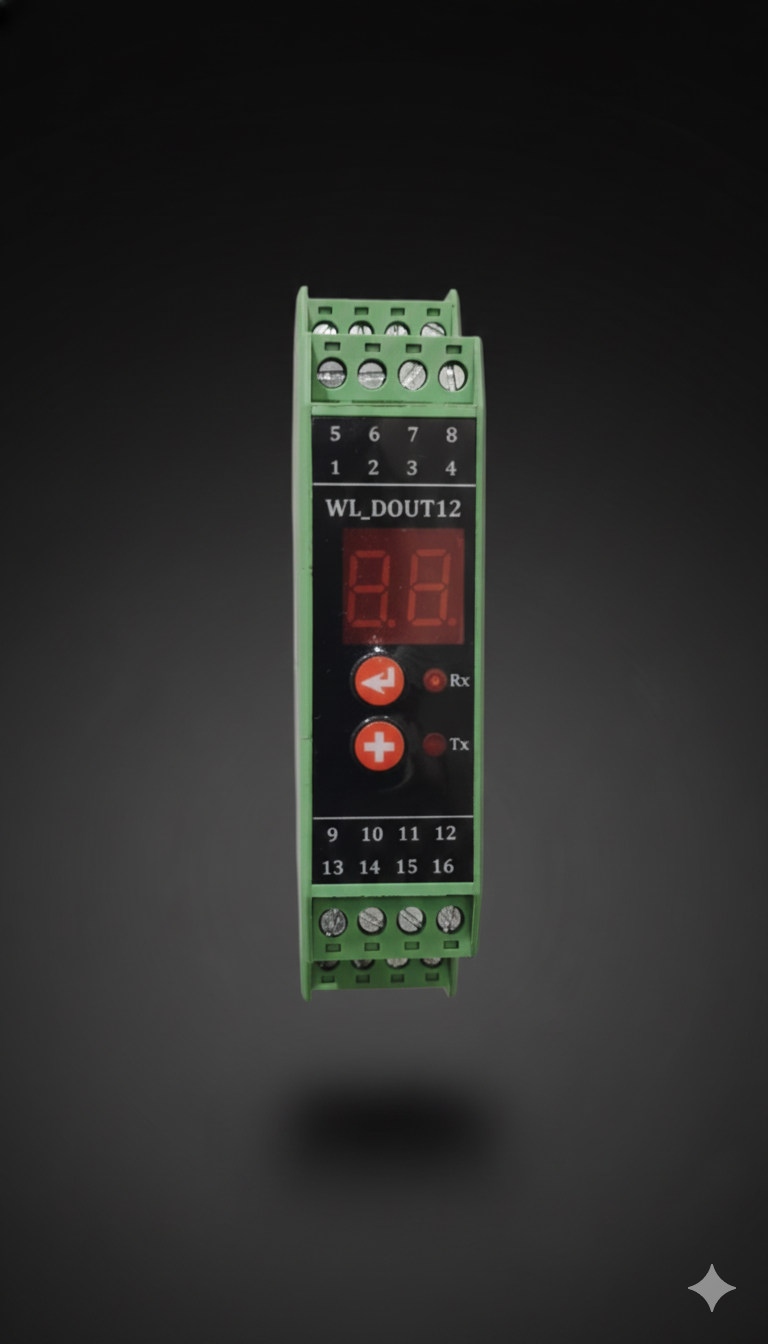

Wireless I/O Module
Seamlessly integrate legacy equipment and sensors into modern IoT ecosystems. Our LoRaWAN-enabled IO Module bridges the gap between older industrial systems and next-generation wireless monitoring platforms.
Product Overview
The Wireless IO Module is a versatile industrial converter designed to bring legacy equipment and traditional sensor systems into the age of wireless connectivity. Whether you're working with outdated PLCs, analog sensors, or mechanical switches, our IO Module provides a bridge to modern IoT platforms without requiring expensive equipment replacement.
With four analog input channels (supporting 4-20mA and 0-10V standards), four digital inputs for switches and alarms, and two relay outputs for control functions, the module delivers comprehensive data acquisition capabilities. DIN rail mounting simplifies installation in existing control cabinets, while RS485 Modbus support ensures compatibility with virtually any industrial control system.
Key Features
How It Works
Signal Acquisition: Analog signals (4-20mA or 0-10V) are received on dedicated input channels. Digital inputs capture switch states and alarm signals. The 12-bit ADC converter ensures precise analog-to-digital conversion.
Processing & Logging: The embedded microcontroller processes sensor data and applies calibration corrections. Data is stored in local flash memory for 50,000+ records with configurable intervals from 1 minute to 24 hours.
Wireless Transmission: Data is encrypted and transmitted via LoRaWAN to your network gateway. Additionally, RS485 Modbus RTU provides direct connectivity to existing industrial control systems for backward compatibility.
Cloud Integration & Control: Data is received by the Controlytics cloud platform and made available through APIs and dashboards. Relay outputs enable remote control and automation based on data thresholds and alerts.
Technical Specifications
| Parameter | Specification |
|---|---|
| Analog Inputs | 4 independent channels, 4-20mA and 0-10V, 12-bit ADC |
| Digital Inputs | 4 input lines, 5V/24V selectable, 10kΩ input impedance |
| Relay Outputs | 2 relay channels, 10A @ 250V AC, NO/NC selectable |
| Wireless Technology | LoRaWAN 1.0.4 Class A/B/C compatible |
| Serial Communication | RS485 Modbus RTU with configurable baud rates |
| Data Logging Storage | 50,000+ records, configurable 1 min to 24 hrs intervals |
| Frequency Bands | 868 MHz EU, 915 MHz US, 923 MHz AS, 470-510 MHz CN |
| Range (Line-of-Sight) | Up to 10 km in open environments |
| Transmit Power | 20 dBm (100 mW) |
| Power Supply Input | 24V DC ±10% |
| Power Consumption | 2.5W typical operation |
| Battery Backup | 8-hour UPS optional |
| Mounting | DIN 35mm rail, 4 modules wide (70mm), 90mm depth |
| Enclosure Material | Aluminum/plastic composite, screw terminals |
| Enclosure Rating | Standard IP20, IP54 available |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Rating | 10-95% RH (non-condensing) |
| Security | AES-128 encryption, LoRaWAN 1.1 compliant |
| Certifications | CE, FCC, RoHS, LoRaWAN Alliance Certified |
Input Signal Standards
| Signal Type | Configuration | Typical Application |
|---|---|---|
| 4-20mA Input | Industry standard analog measurement loop | Pressure transmitters, temperature transducers, flow meters |
| 0-10V Input | Voltage-based analog measurement | Analog sensors, legacy instrumentation, control signals |
| Digital Input | Switch/alarm contact monitoring | Equipment status, alarms, binary switches, pump switches |
| Relay Output | Contact closure for device control | Pump activation, valve control, alarm triggering, equipment shutdown |
Industry Applications
The Wireless I/O Module is designed to modernize legacy industrial systems across diverse sectors where upgrading infrastructure is prohibitively expensive or technically unfeasible.
Downloads & Documentation
Ready to Modernize Your Legacy Systems?
Get started with our Wireless IO Module and bridge the gap to Industry 4.0. Our team can help you design a solution tailored to your specific requirements.
