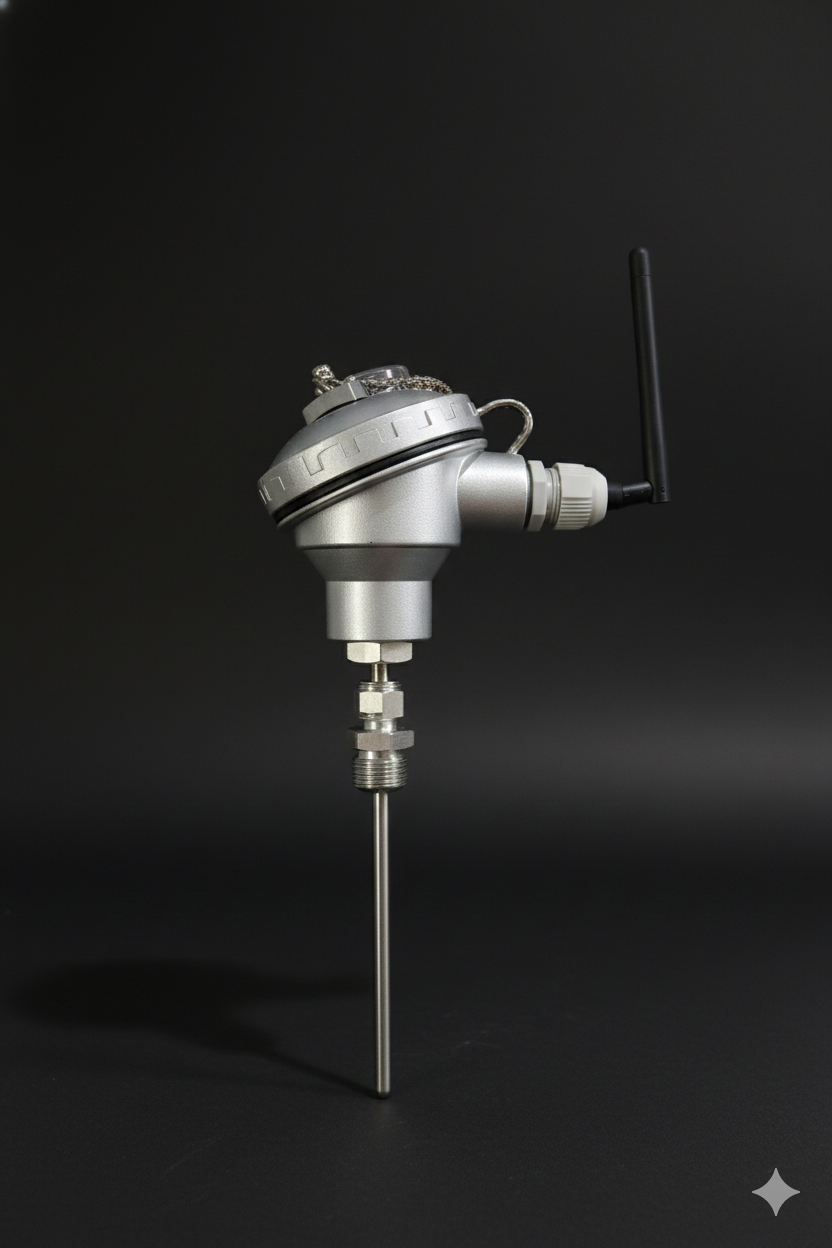

Wireless RTD Temperature Sensor

Industrial-grade LoRaWAN temperature monitoring with Pt100 RTD sensor. Precision monitoring across extreme temperature ranges with 5+ year battery life.

Temperature Range

-200°C to +600°C

Accuracy

±0.5°C

Battery Life

5+ Years

Enclosure

IP67

Request Quote Download Datasheet

Product Overview

The Controlytics Wireless RTD Temperature Sensor is a precision industrial temperature monitoring solution designed for the most demanding applications. Built with industry-leading Pt100 RTD (Resistance Temperature Detector) sensors, this device delivers accurate temperature readings across an exceptional range of -200°C to +600°C, making it suitable for cryogenic, ambient, and extreme industrial heating applications.

With LoRaWAN wireless connectivity, this sensor eliminates the need for expensive wiring and conduit installation. The IP67-rated enclosure provides robust protection against dust, moisture, and submersion, while the aluminum and stainless steel construction ensures longevity in harsh industrial environments. Battery-powered operation with 5+ years of estimated life reduces maintenance burden and operational costs.

Key Features

🌡️

Extreme Temperature Range

Operates reliably from cryogenic (-200°C) to extreme heating (+600°C) applications, covering virtually all industrial temperature monitoring needs.

📡

LoRaWAN Wireless

Secure, long-range wireless communication with up to 10km range in open environments. No wiring or infrastructure installation required.

⚡

5+ Year Battery Life

Optimized power consumption provides 5+ years of continuous operation on a single battery charge. Predictive battery alerts ensure proactive maintenance.

🔒

IP67 Enclosure

Military-grade IP67 rated housing protects against dust ingress and temporary submersion. Stainless steel construction for corrosive environments.

✓

±0.5°C Accuracy

Precision Pt100 RTD sensor delivers ±0.5°C accuracy across the entire operating range. Ideal for critical temperature-sensitive processes.

📊

Real-Time Monitoring

Cloud-based dashboard provides real-time temperature monitoring, historical trending, and customizable alerts for temperature excursions.

How It Works

Measurement: The Pt100 RTD sensor measures temperature by converting thermal energy into electrical resistance. The integrated amplifier measures this resistance and converts it to a digital temperature value.

Processing: The embedded microcontroller processes the raw sensor data, applies calibration corrections, and stores historical measurements in local flash memory for data integrity.

Transmission: Data is encrypted and transmitted via LoRaWAN to your network gateway. The adaptive data rate algorithm optimizes battery life while maintaining reliable communication.

Cloud Platform: Temperature data is received by the Controlytics cloud platform, where it's processed, visualized, and made available through our web and mobile applications.

Technical Specifications

Parameter	Specification
Temperature Range	-200°C to +600°C
Sensor Type	Pt100 RTD (IEC 60751 Class A)
Accuracy	±0.5°C or ±0.1% over -200 to +600°C range
Response Time	5-10 seconds (95% response)
Resolution	0.1°C
Measurement Interval	Configurable: 1 minute to 24 hours
Wireless Technology	LoRaWAN (Class A, B, C compatible)
Frequency Bands	868 MHz EU, 915 MHz US, 923 MHz AS, 470-510 MHz CN
Range (Line-of-Sight)	Up to 10 km in open environments
Transmit Power	20 dBm (100 mW)
Receiver Sensitivity	-140 dBm
Security	AES-128 encryption, LoRaWAN 1.1 compliant
Power Source	2 x AA Lithium batteries (3.6V total)
Battery Life	5+ years (typical, with 15-minute measurement interval)
Current Consumption	Sleep: 2 µA; TX: 120 mA; RX: 15 mA
Enclosure Material	Die-cast aluminum with epoxy coating; Stainless steel probe
Enclosure Rating	IP67 (dust-tight, temporary submersion)
Operating Temperature	-40°C to +85°C (device)
Storage Temperature	-50°C to +100°C
Humidity Rating	0-100% RH (non-condensing)
Dimensions	85 x 110 x 45 mm (body); 150 mm probe length (configurable)
Weight	320 grams
Mounting Options	Wall-mount bracket, DIN rail, direct surface mounting with magnet
Certifications	CE, FCC, RoHS, LoRaWAN Alliance Certified

Probe Options

Probe Type	Configuration	Best For
Immersion Probe	150mm, 300mm, or 500mm stainless steel immersion	Liquids, high-viscosity fluids, batch processes
Surface Mount Probe	Flat surface contact with thermal epoxy	Pipes, vessel surfaces, solid materials
High-Temp Sheath	Ceramic lined ceramic protection tube	Extreme heat (400°C+), radiation environments
Duct Mount	Internal duct cross-bar mounting	HVAC systems, air handlers, cleanrooms

Industry Applications

The Wireless RTD Temperature Sensor is deployed across diverse industrial sectors where precision temperature monitoring is critical to safety, quality, and efficiency.

💊

Pharmaceutical Cold Chain

Monitor vaccine storage, biologics, and temperature-sensitive medication distribution with FDA 21 CFR Part 11 compliant logging and alerts.

🔬

Laboratory & Cleanrooms

Precise monitoring of cleanroom temperature profiles, incubators, and controlled storage environments with historical trending for validation.

🍳

Autoclave Monitoring

Real-time sterilization cycle monitoring in medical device sterilization with automatic cycle validation and failure alerts.

❄️

Cryogenic Systems

Monitor liquid nitrogen, helium, and other cryogenic systems from -200°C with ultra-reliable readings and secure alerts.
