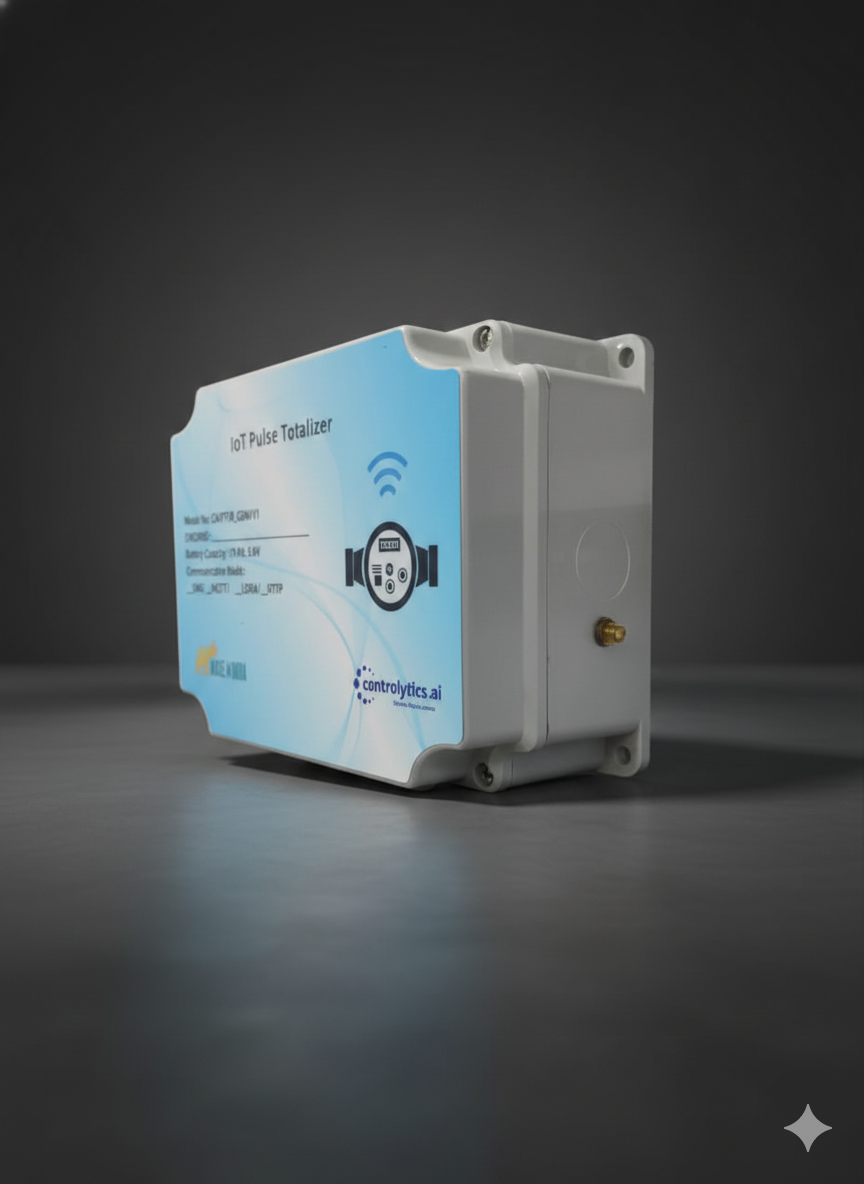

IoT Pulse Totaliser

Smart wireless pulse counting and utility metering device with LoRaWAN connectivity. Monitor water, gas, and electricity consumption with real-time cloud analytics.

Pulse Channels

2 Inputs

Counting Accuracy

99.99%

Battery Life

5+ Years

Communication

LoRaWAN

Request Quote Download Datasheet

Product Overview

The IoT Pulse Totaliser is a lightweight, battery-powered device designed to count pulses from mechanical and electronic meters without complex modifications. Whether monitoring water consumption, electricity usage, gas flow, or production output, the Pulse Totaliser accurately captures and transmits counting data via LoRaWAN networks.

Featuring dual pulse input channels with configurable multipliers, the device adapts to various meter types and measurement requirements. The ultra-low power architecture enables battery operation exceeding 5 years in typical deployment scenarios, while built-in data buffering ensures no data loss during network interruptions or maintenance windows.

Key Features

⚙️

Dual Pulse Counting

Two independent pulse input channels supporting configurable multipliers. Monitor multiple utility streams simultaneously from a single device.

📡

LoRaWAN Connectivity

Secure, long-range wireless communication with adaptive data rates. Up to 15km range in open environments without wiring infrastructure.

🔋

5+ Year Battery Life

Optimized power consumption provides 5+ years of continuous operation on standard AA lithium batteries. Predictive battery alerts ensure proactive maintenance.

📊

Cloud Dashboard

Real-time monitoring, historical trending, and customizable alerts. Comprehensive analytics for consumption patterns and anomaly detection.

💧

Multi-Utility Support

Seamlessly integrate water, gas, electricity, and fluid metering. Reed relay and dry contact compatibility for universal meter connectivity.

🔒

IP65 Enclosure

Sealed IP65-rated housing protects against dust and moisture. Compact form factor suitable for meter cabinets and outdoor installations.

How It Works

Pulse Detection: The Totaliser detects pulse signals from meter reed switches or dry contacts. Configurable debounce intervals filter false signals while maintaining accuracy.

Data Processing: The embedded microcontroller counts incoming pulses, applies user-configured multipliers, and stores measurements in local flash memory with timestamp precision.

Wireless Transmission: Counted data is encrypted and transmitted via LoRaWAN to your network gateway. Adaptive spreading factors optimize battery life while maintaining reliability.

Cloud Analytics: Data is received by the Controlytics cloud platform for processing, visualization, and integration into your business intelligence systems.

Technical Specifications

Parameter	Specification
Pulse Input Channels	2 independent inputs, up to 1000 pulses/sec per channel
Counting Accuracy	±1 pulse (hardware-level accuracy)
Multiplier Range	0.001 to 99999.999 pulses/unit, configurable per channel
Data Storage	50,000+ historical records with second-resolution timestamps
Wireless Technology	LoRaWAN 1.0.4 (Class A, B, C compatible)
Frequency Bands	868 MHz EU, 915 MHz US, 923 MHz AS, 470-510 MHz CN
Range (Line-of-Sight)	2-15 km depending on spreading factor and environment
Data Rate	SF7-SF12 adaptive spreading factors for optimal battery life
Transmit Power	20 dBm (100 mW)
Security	AES-128 encryption, LoRaWAN 1.1 compliant
Power Source	2 x AA Lithium batteries (3.6V total)
Battery Life	5+ years (typical, based on transmission interval)
Current Consumption	Sleep: 15 µA; TX: 120 mA; RX: 15 mA
Input Compatibility	Reed switches, dry contacts, rising/falling edge trigger
Debounce Filter	20ms programmable debounce interval
Enclosure Material	ABS plastic with IP65 rating
Operating Temperature	-20°C to +60°C (device)
Storage Temperature	-40°C to +85°C
Humidity Rating	0-100% RH (non-condensing)
Dimensions	120 x 85 x 45 mm (compact form factor)
Weight	220 grams with batteries
Mounting Options	Wall-mount bracket, surface mounting with adhesive/screws
Certifications	CE, FCC, RoHS, LoRaWAN Alliance Certified

Industry Applications

The IoT Pulse Totaliser is deployed across diverse industrial and utility sectors where accurate consumption monitoring and automated billing are critical.

💧

Water Utility Metering

Monitor water consumption across municipal systems and commercial accounts. Detect leaks, track usage patterns, and enable automated billing without meter replacement.

⚡

Electricity Monitoring

Count electricity meter pulses for real-time consumption tracking and demand-side management. Support building energy audits and renewable energy integration monitoring.

🔥

Gas Flow Measurement

Connect to gas meter reed switches for consumption monitoring. Enable early detection of gas leaks and support regulatory compliance documentation.

🏭

Production Counting

Track production output from machinery and equipment with pulse-based sensors. Monitor production rates, detect equipment malfunctions, and optimize manufacturing efficiency.

⛽

Oil & Fluid Dispensing

Monitor fuel dispensers and fluid distribution systems. Track consumption and prevent fuel theft through continuous flow monitoring and usage alerts.

🏢

Building Utilities Tracking

Consolidate multiple utility meters into single monitoring system. Enable comprehensive facility management and sustainability reporting across water, electricity, and gas.
